Flexible Cable Management

Wire Mesh

Flexible Cable Tray

Tested heavy loads, easy installation, flexible option for cables.

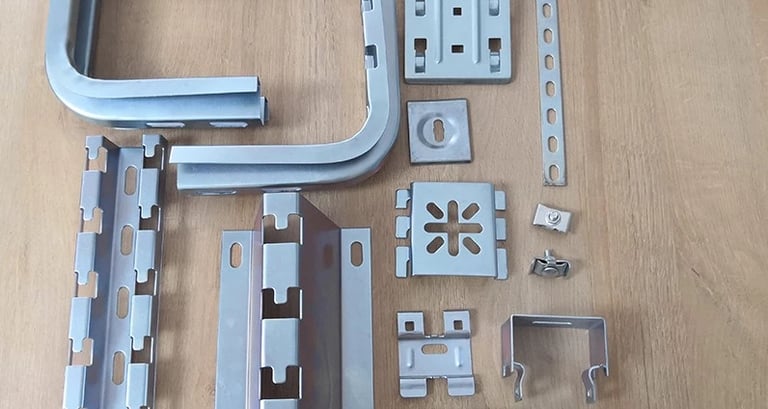

Cable Management

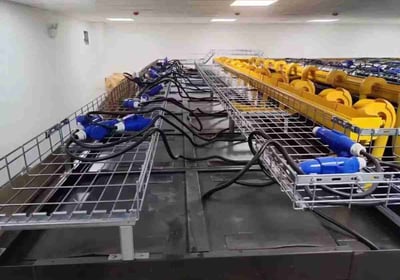

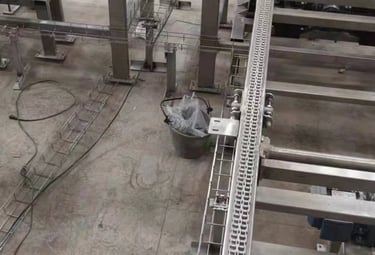

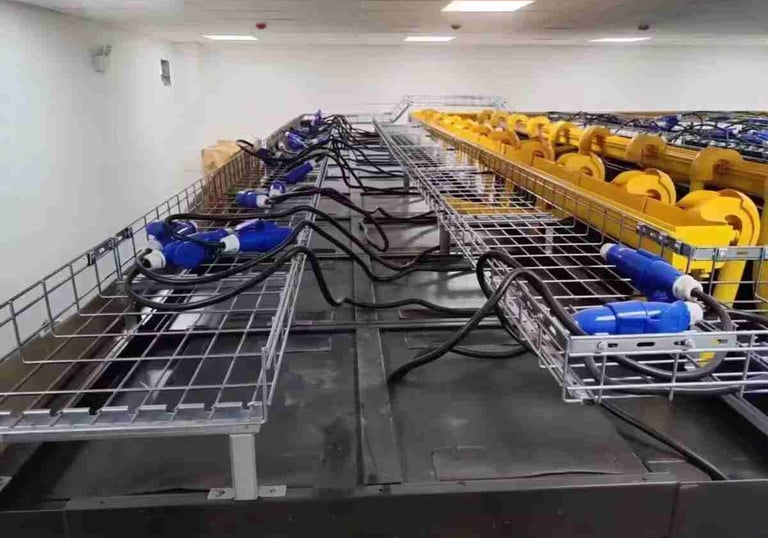

Power Cable Paths

Ideal for heavy power cable paths in various applications.

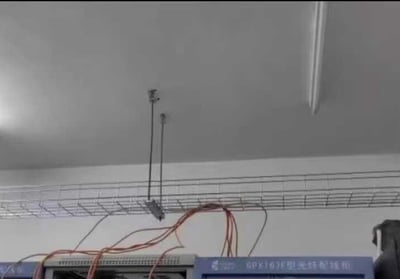

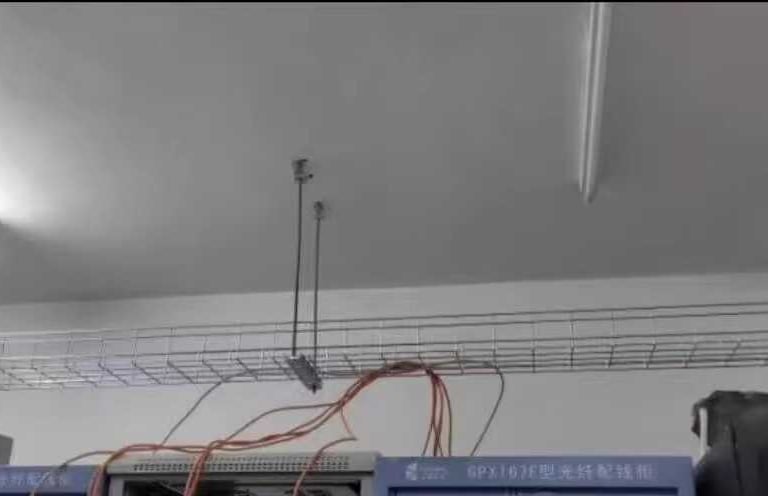

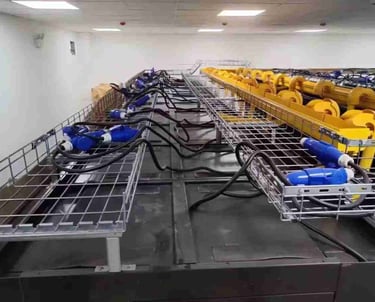

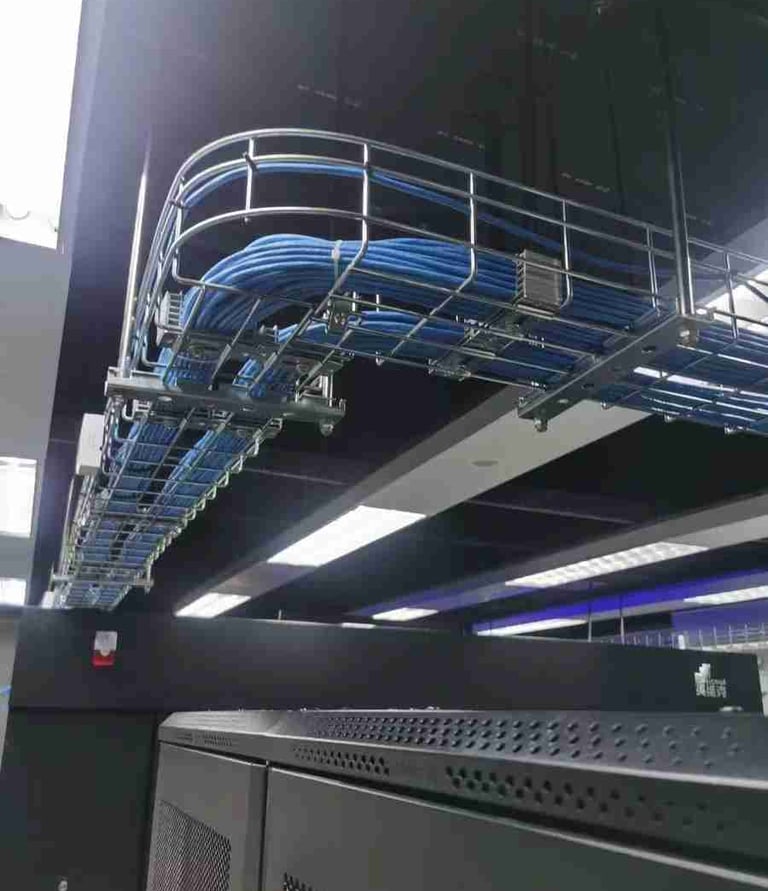

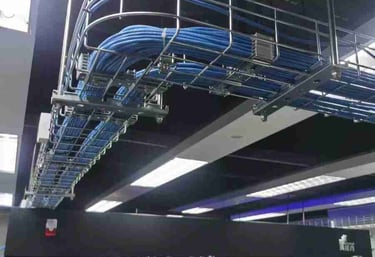

Office Building Installation

Perfect for below floors in modern office buildings.

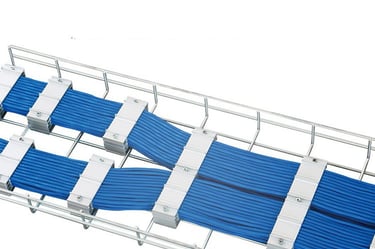

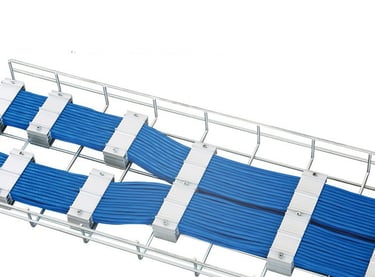

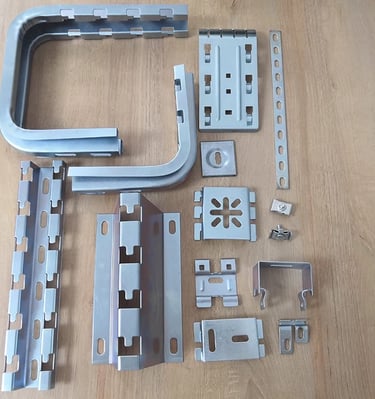

Aluminum Cable Fixer

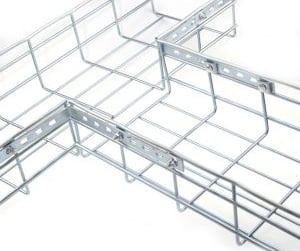

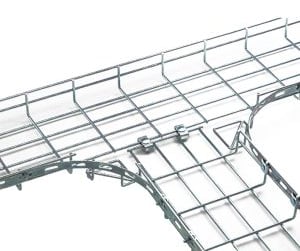

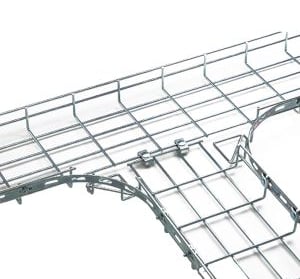

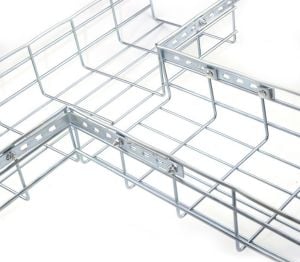

Tee 2

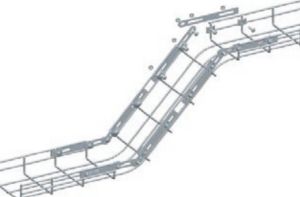

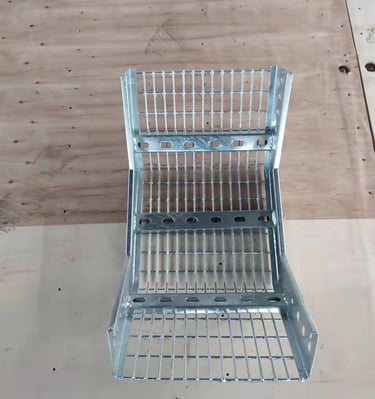

Riser

Tee 1

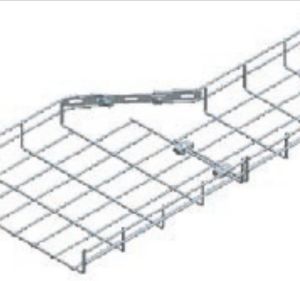

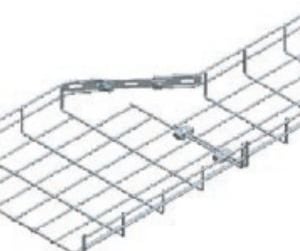

Reducer

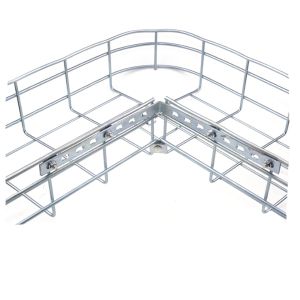

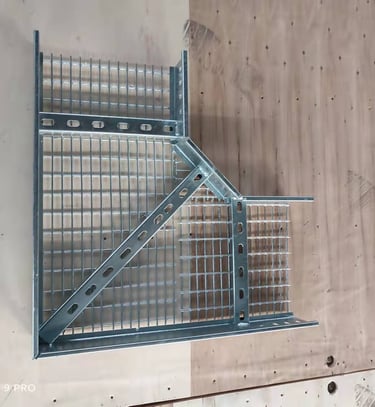

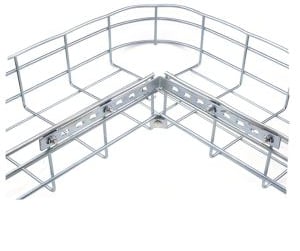

Elbow

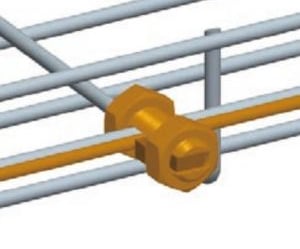

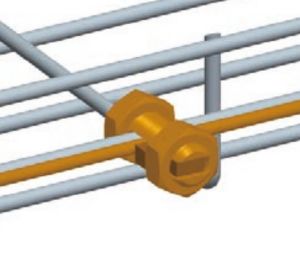

Copper Earthing Bolt

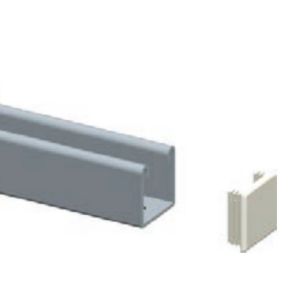

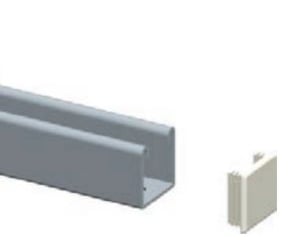

C Channel Terminator

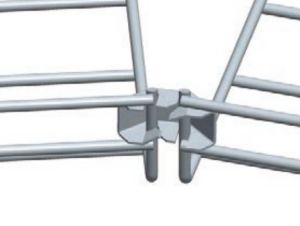

Fast Lock

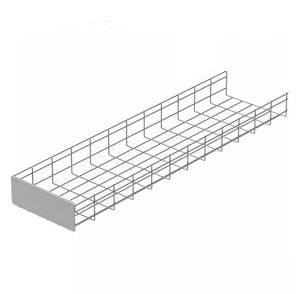

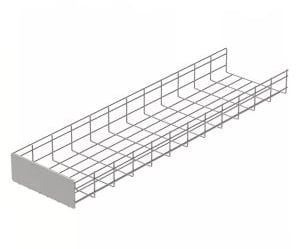

Terminator

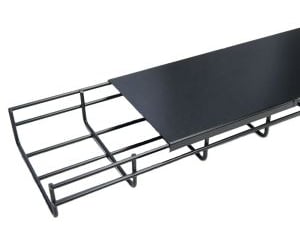

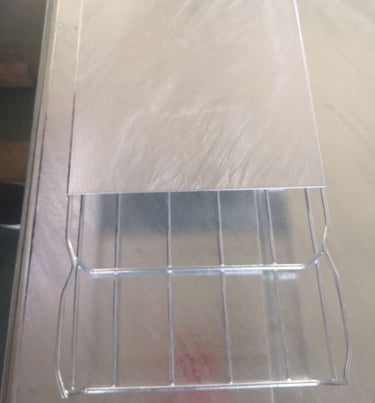

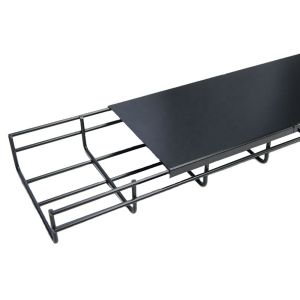

Self Lock Cover

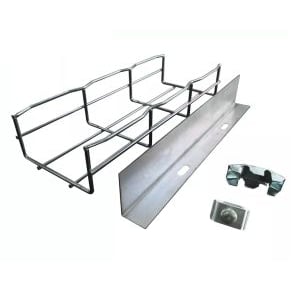

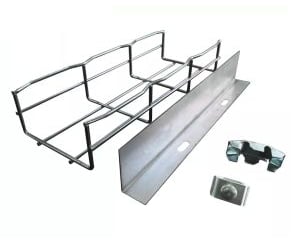

Divider

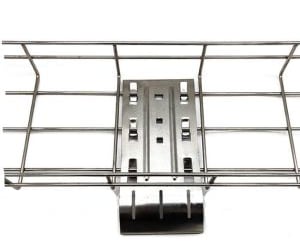

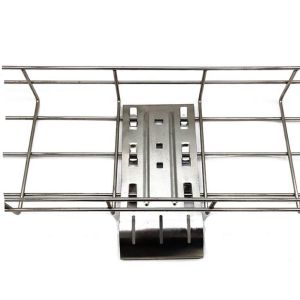

Cable Guider

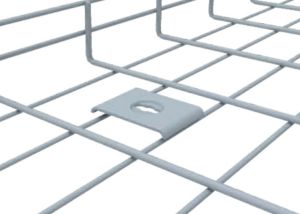

Central Hold Down

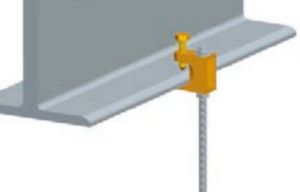

Beam Clamp

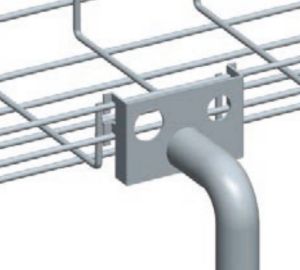

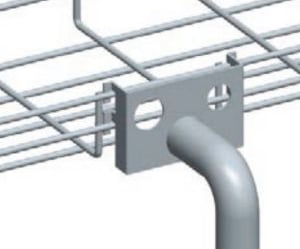

Pipe Board

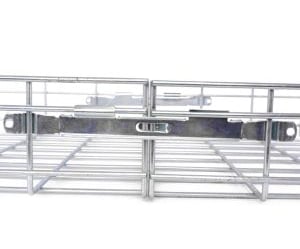

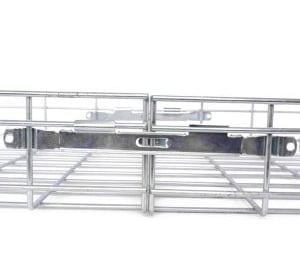

Fast Fix Splicer

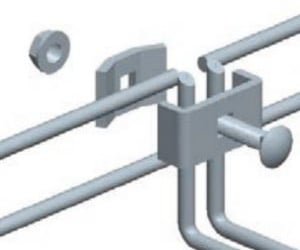

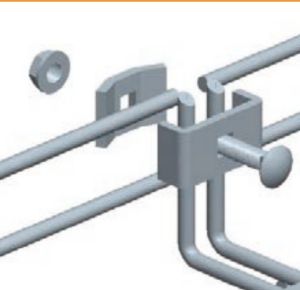

Coupler

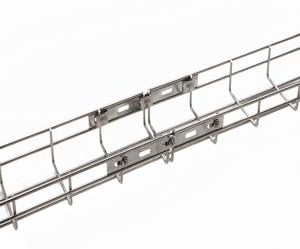

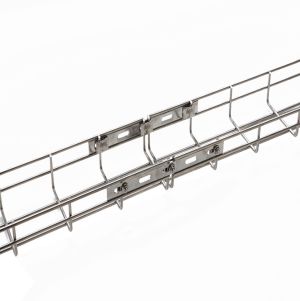

Strengthening Line

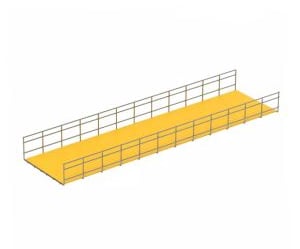

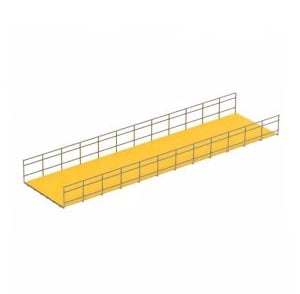

Bottom plate

TECHNICAL PARAMETERS

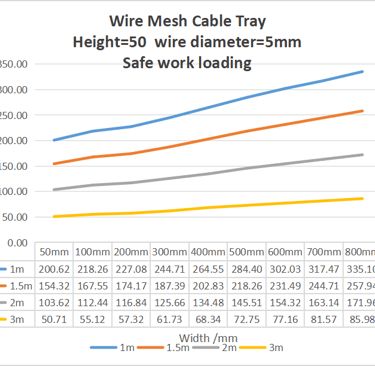

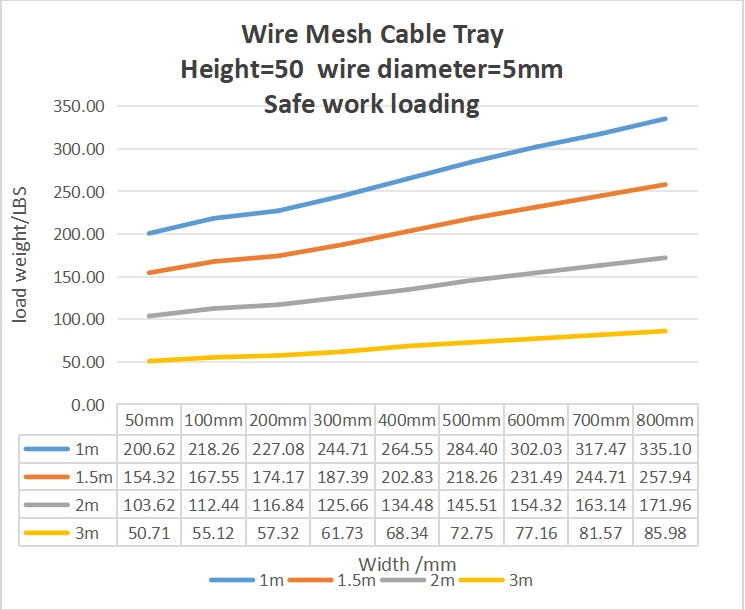

Safe Work Loading Test

The test is taken in compliance with Standard lEC:61537-2007.Below tables show the safe work loading data. The data of Mlax loading is 2-3 times that of Safe loadingIF welding technology enables the welding spot with better strength.

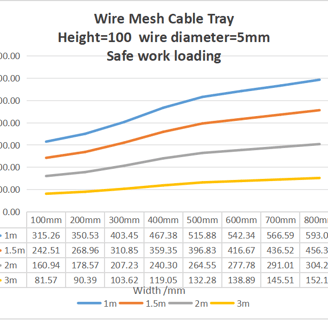

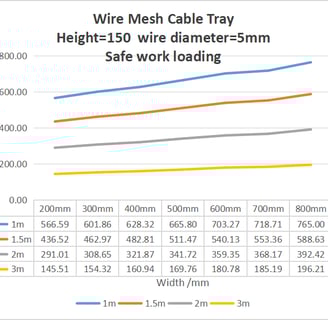

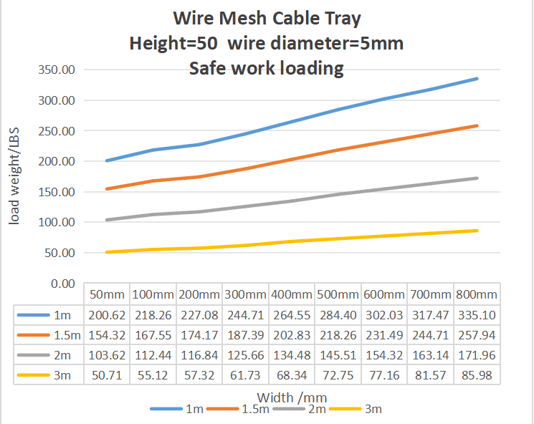

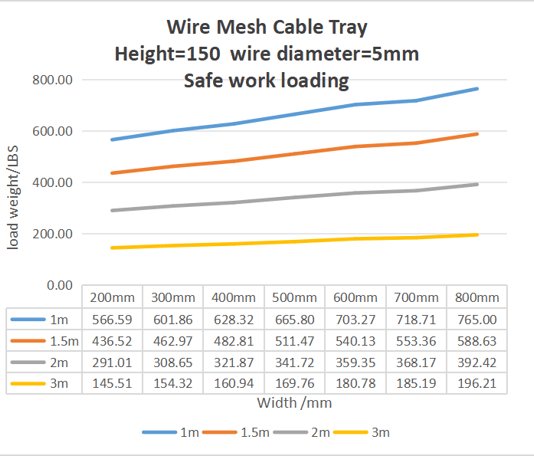

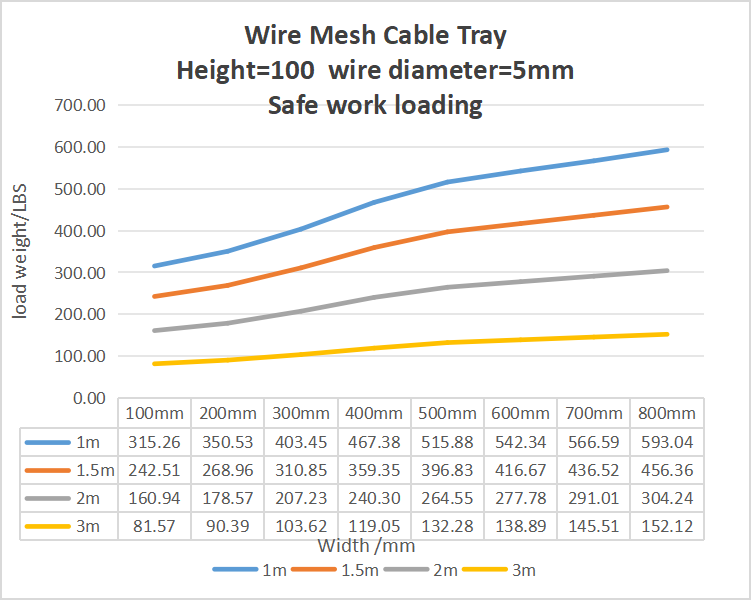

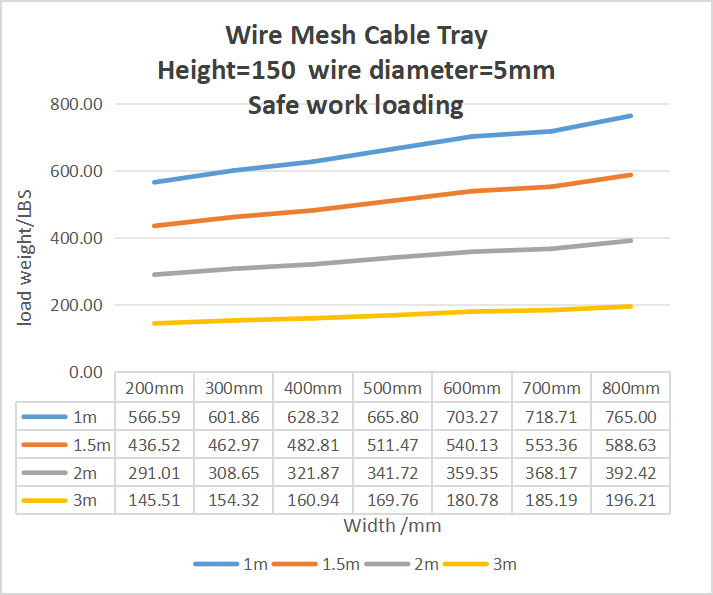

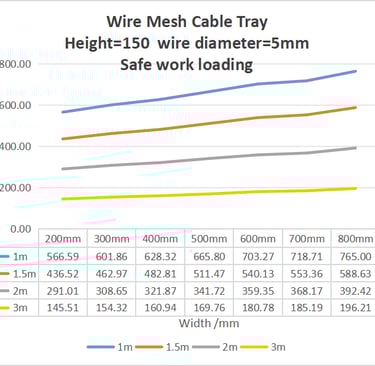

Loading Capability of cable wire baskets(lbs/meter)

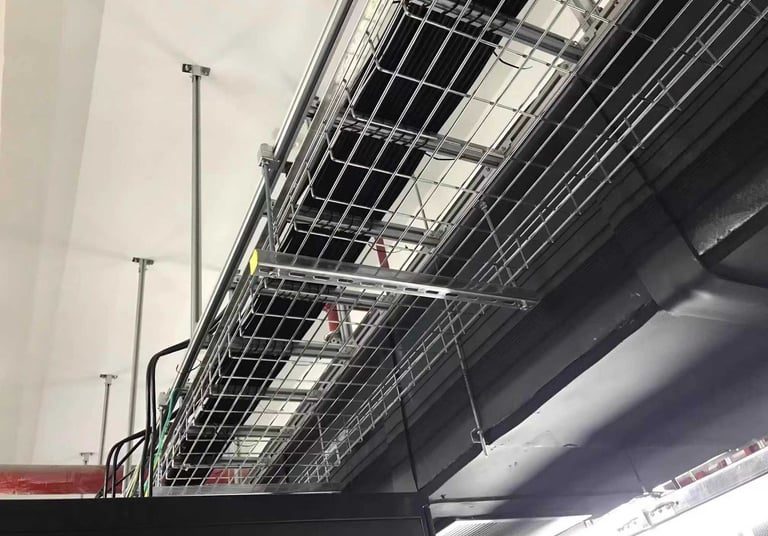

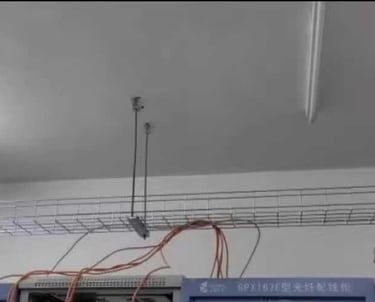

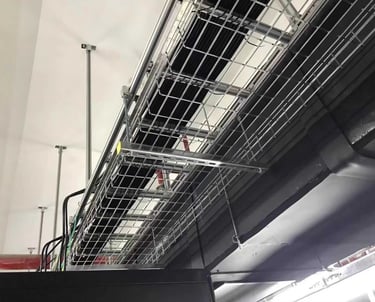

Ceiling installation

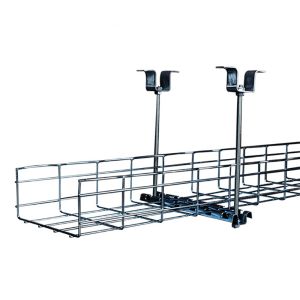

• Apply to: Hang cable trays under ceiling

• Fit for:Diameter of wire from 3.5mm to 6.0mm

• Include: 1 unit, (Threaded Rods and expansion bolt nuts are optional)

• Feature:Most popular

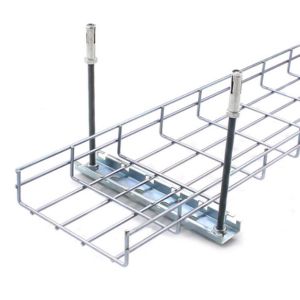

• Apply to: Hang cable trays under ceiling

• Fit for:Diameter of wire from 3.5mm to 6.0mm

• Include: 1 unit, (Threaded Rods and U clip, nuts are optional)

• Feature:Most popular

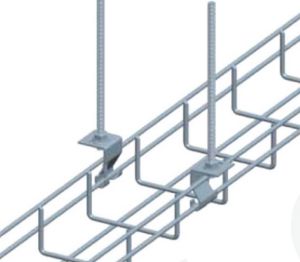

• Apply to: Hang trays under ceiling

• Fit for:Diameter of wire from 3.5mm to 6.0mm,the width of tray should be < 200mm

• Include: 1 unit(threaded rods and nuts are optional)

• Feature: Economical and easy to install

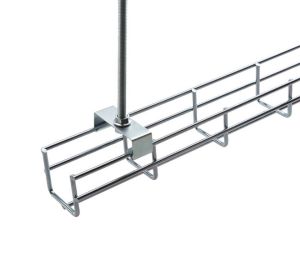

• Apply to: Hang 50mm width trays under ceiling

• Fit for: Diameter of wire from 3.5mm to 6.0mm,the width of tray is 50mm

• Include: 1 unit (threaded rods and nuts are optional)

• Feature: For 50mm width tray only

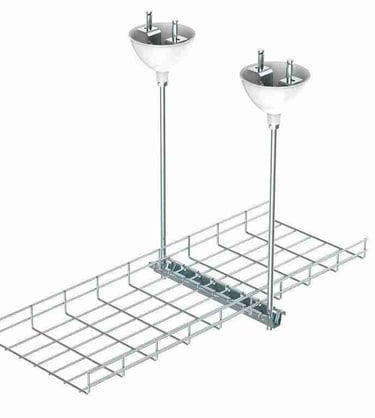

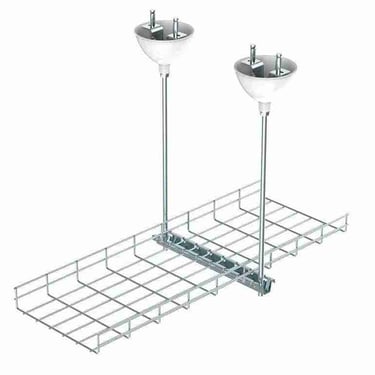

• Apply to: hanging in the ceiling

• Fit for:Diameter of wire from 3.5mm to 6.0mm

• Include:1 unit(Threaded rod ,bowl,u clip ,nuts are optional

• Feature:Standard structure material

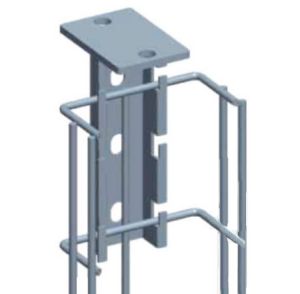

• Apply to:Hange trays under ceiling vertically

• Fit for.Diameter of wire from 3.5mm to 6.0mm

• Include:Unit x 1

• Feature: No swing

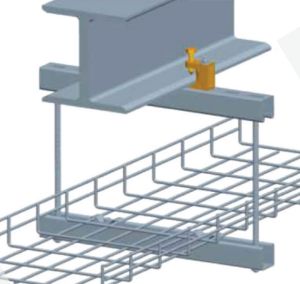

• Apply to: Installation of wire mesh cable tray under I-beam or U-channel

• Fit for:Threaded Rod 10mm-12mm in Dia

• Include:Unit x 1

• Feature:Wide usage and strong support

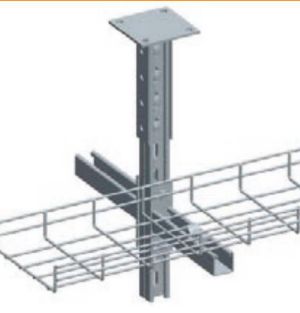

• Apply to: Hange trays under ceiling

• Fit for:Diameter of wire from 3.5mm to 6.0mm

• Include:support x 1, pole x 1

• No swing, height adjustable

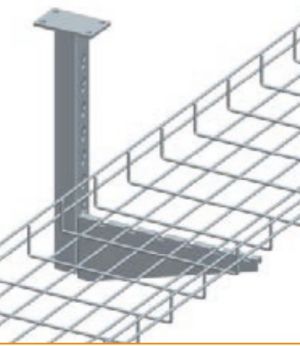

• Apply to: Hang trays under ceiling

• Fit for:Width of wire mesh less than 400mm

• Include:TCHx1.M10x60 BOLT&NUTS x4

• Feature: For multi-layers, height adjustable

Wall installation

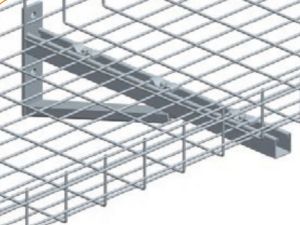

• Apply to: Wall mount of wire mesh cable tray

• Fit for: Wire diameter from 3.5mm to 6.0mm, width from 400mm to 900mm wire mesh cable trays

• Include:support x 1.fixing set x 2

• Feature:Strong supporting, suitable for big size wire mesh cable trays

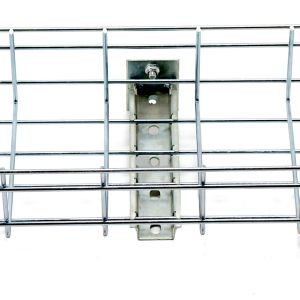

• Apply to: Support wire mesh cable trays on wall

• Fit for:Diameter of wire from 3.5mm to 6.0mm

• Include:Unit x 1

• Feature:No swing

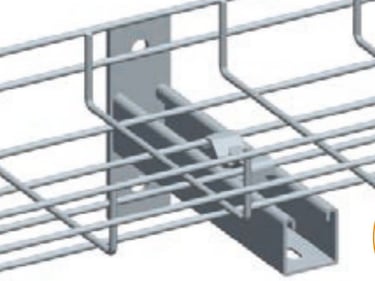

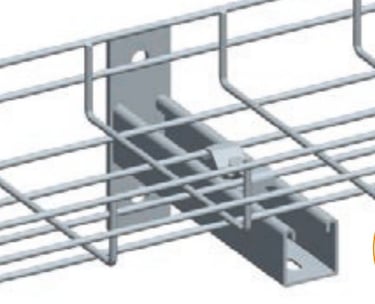

• Apply to: Wall mount of wire mesh cable tray

• Fit for:Width from 100mm to 300mm wire mesh cable trays

• Include:support x 1, fixing set x 1

• Feature: Heavy duty supporting

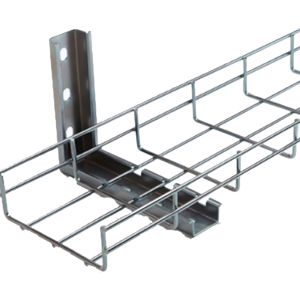

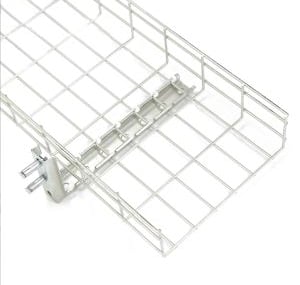

• Apply to: Support cable trays on wall

• Fit for:Diameter from 3.5mm to 6.0mm,width from 100mm to 300mm

• Include:Unit x 1 (bolt and nut optional)

• Feature: Save space

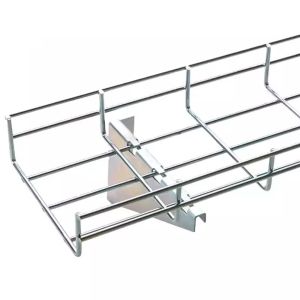

• Apply to: Support trays on wall

• Fit for:Diameter from 3.5mm to 6.0mm,width from 100mm to 600mm

• Include:Unit x 1 (bolt and nut optional)

• Feature: For all size of trays

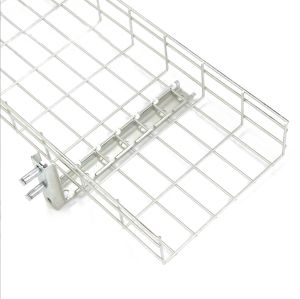

• Apply to: Support cable trays on wall

• Fit for:Diameter from 3.5mm to 6.0mm,width from 100mm to 600mm

• Include:Unit x 1 (bolt and nut optional)

• Feature: Save space

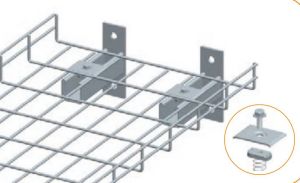

• Apply to: Wall mount bracket for supporting the end of wire mesh cable tray

• Fit for:All widths of wire mesh cable trays.

• Include:M8x20 Bolt x1 M8 Spring Nut x 1, plate x 1

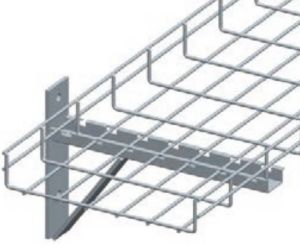

• Apply to:Support cable trays on wall

• Fit for:Diameter from 3.5mm to 6.0mm,width from 300mm to 900mm

• Include:Unit x 1 (bolt and nut optional)

• Feature:Strong supporting, for trays in big width

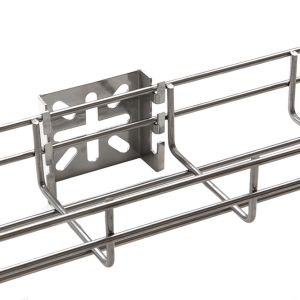

• Apply to: Support cable trays on side wall

• Fit for:Diameter from 3.5mm to 6.0mm,width from 50mm to 200mm

• Include: 1 unit

• Feature: Easy installation and low cost

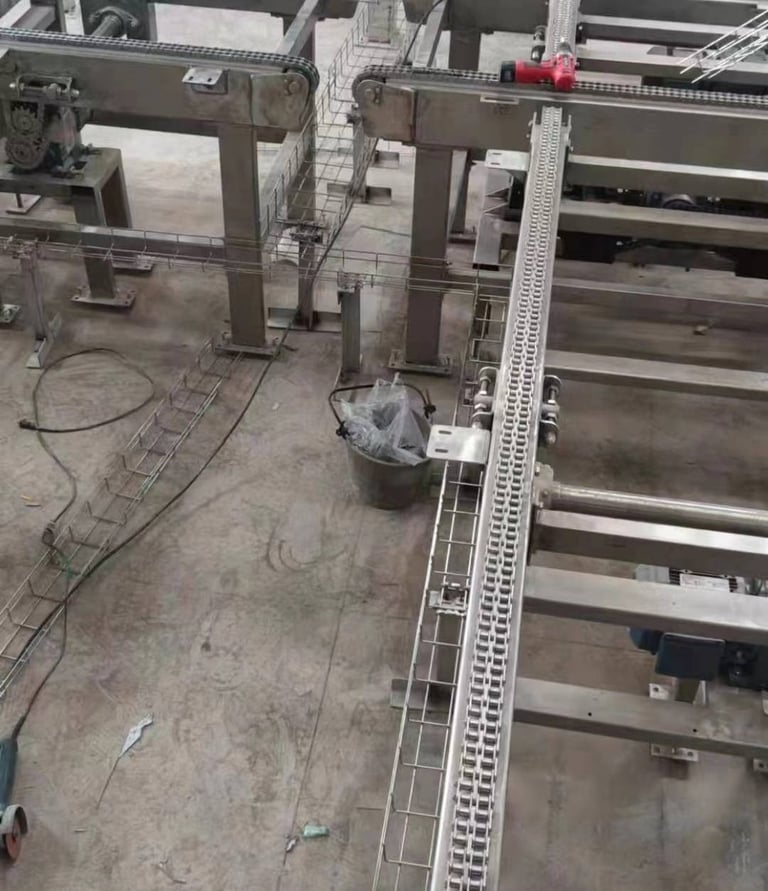

Floor installation

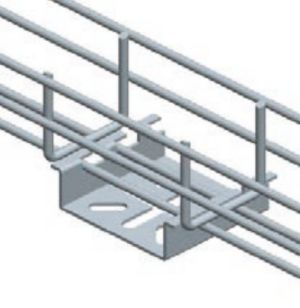

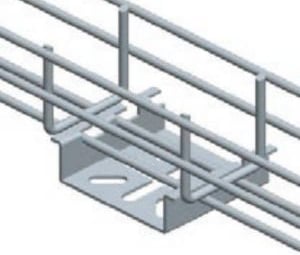

• Apply to: Support trays on floor

• Fit for:Diameter from 3.5mm to 6.0mm,width from 100mm to 600mm

• Inciude:1 unit

• Feature:Easy installation and low cost

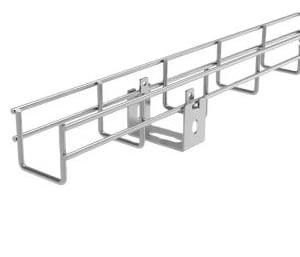

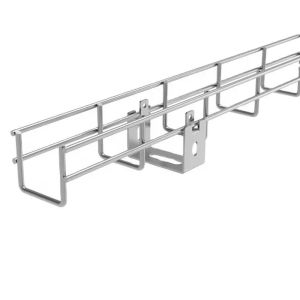

• Apply to: Support 50mm trays on floor ortop of cabinet

• Fit for:Diameter from 3.5mm to 6.0mm.Width =50mm trays

• Include:1 unit

• Feature:Easy installation and low cost

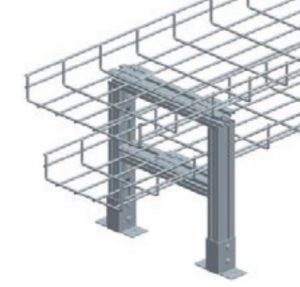

• Apply to: On floor or cabinet top, install single or double-layer of trays. Height adjustable

• Fit for:Width Trays from 100mm to 600mm,height of support 300mm or customized

• Include:1 set

• L-type connecter x 4

• Feature:For multi-layers, Height adjustable

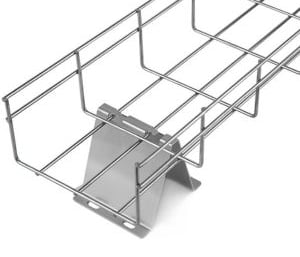

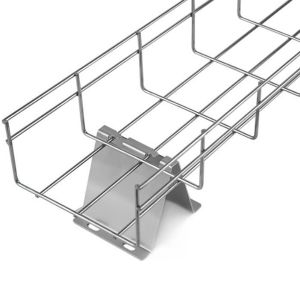

• Apply to: Support trays on floor or top of cabinet

• Fit for:Width 100mm trays

• Include: 1 unit

• Feature:Easy installation and low cost

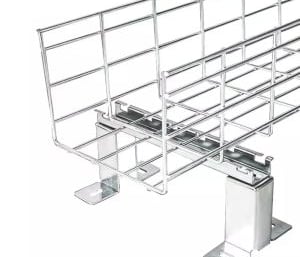

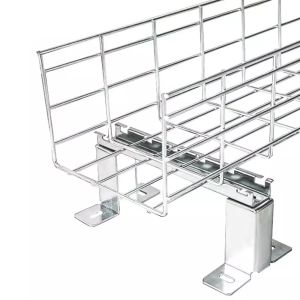

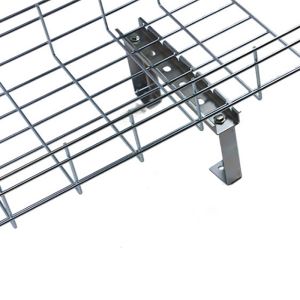

• Apply to: Floor or cabinet top

• Fit for:Width of tray from 100mm to 600mm

• Include:Bar x 1, footx 2, a set of bolt and nut

• Feature: Easy installation

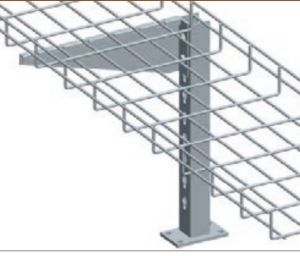

• Apply to: Support cable trays on floor

• Fit for:Diameter from 3.5mm to 6.0mm,width from 100mm to 600mm

• Inciude.support x1,POLE x1

• Feature: Height adjustable

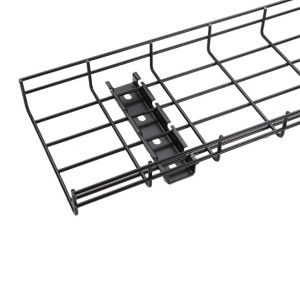

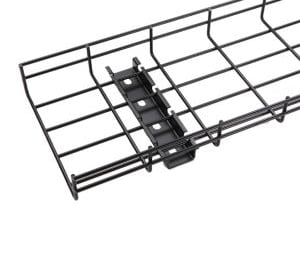

• Apply to: Install cable trays on floor

• Fit for:Diameter of wire from 3.5mm to 6.0mm

• Include: 1 unit, (Anchor bolts and nuts are optional)

• Feature: Most popular

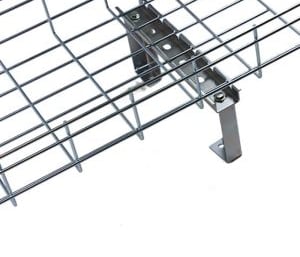

• Apply to: Floor or cabinet top

• Fit for:Width of tray from 100mm to 600mm

• Include:Bar x 1, footx 2, a set of bolt and nut

• Feature: Easy installation

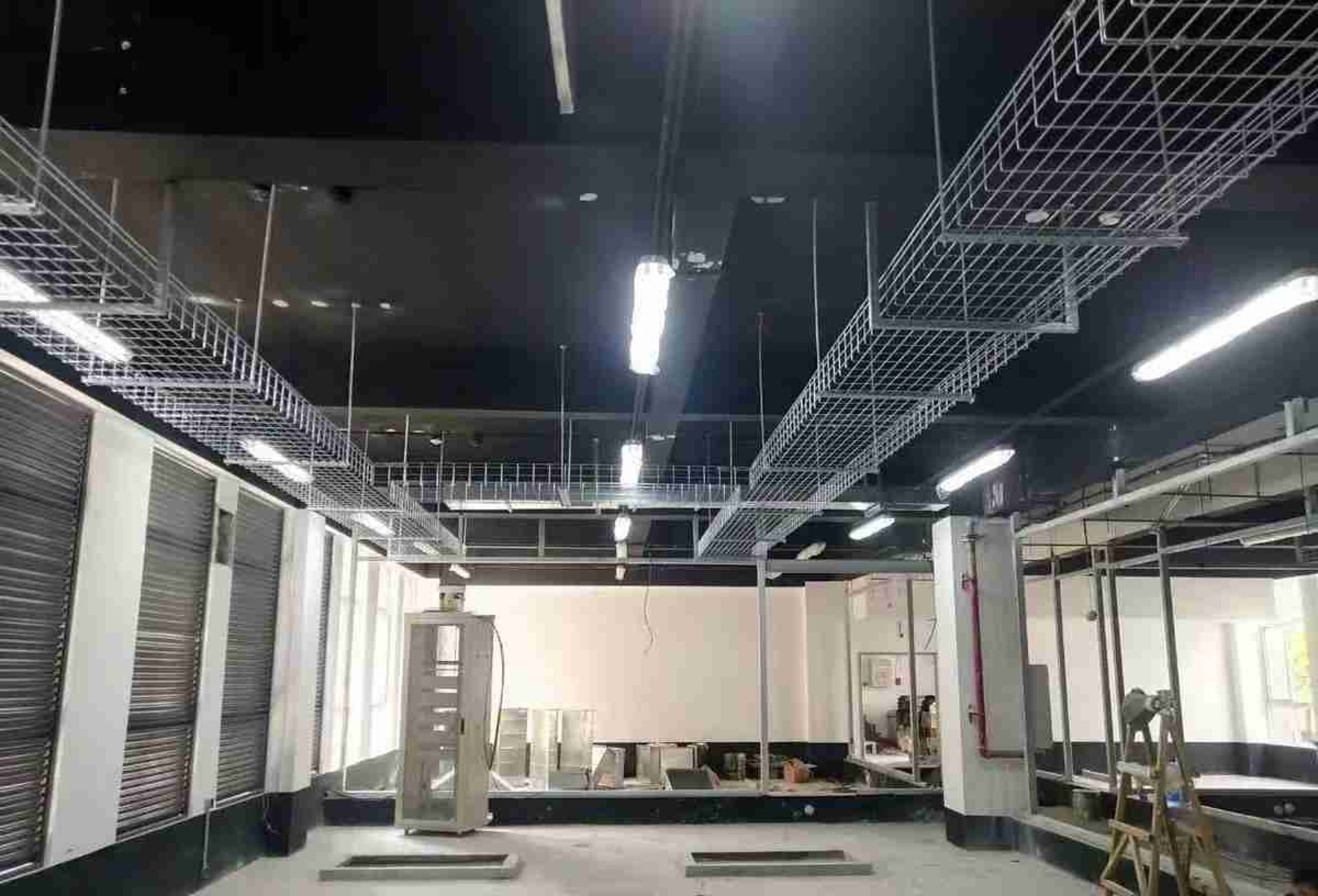

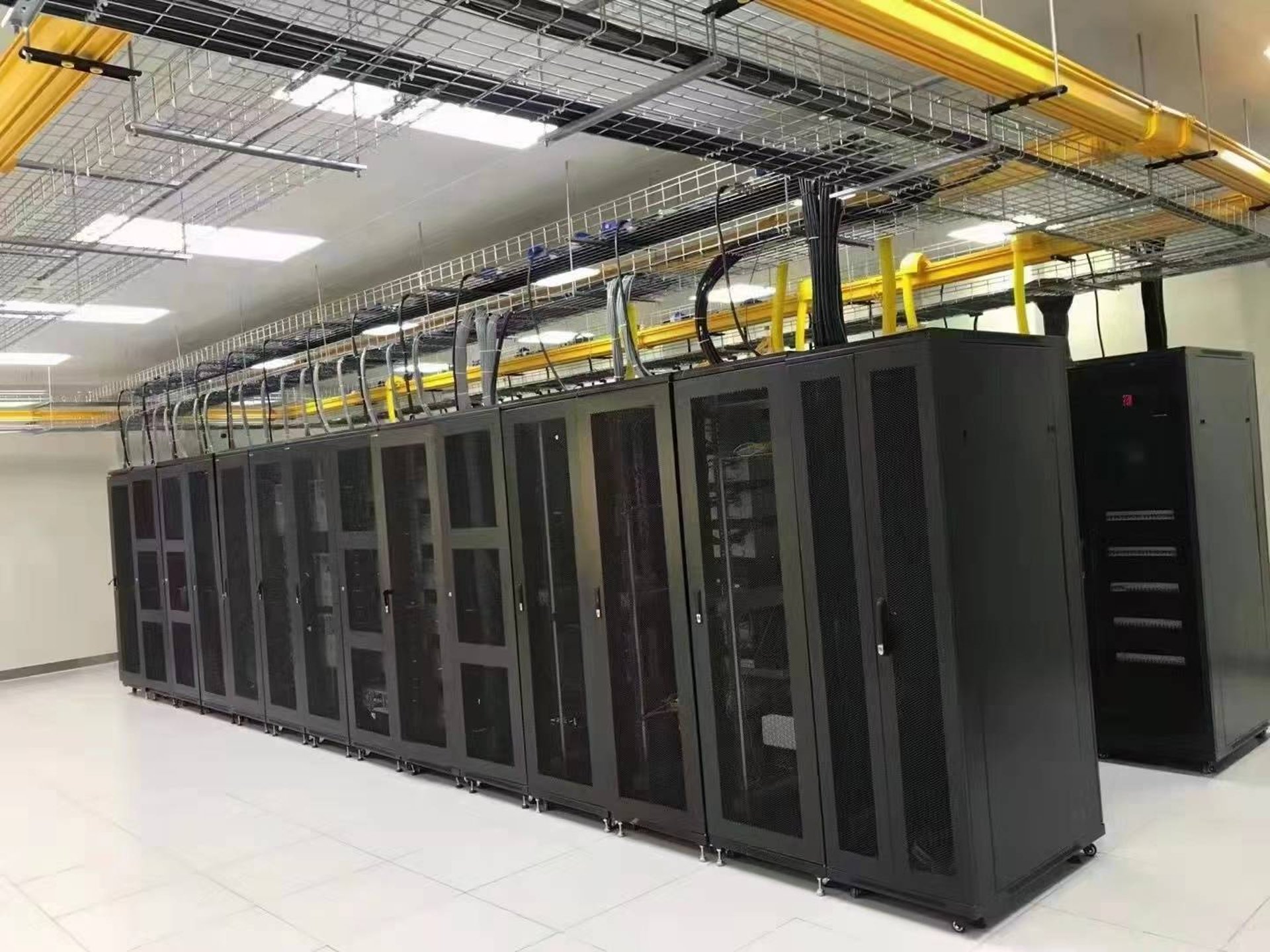

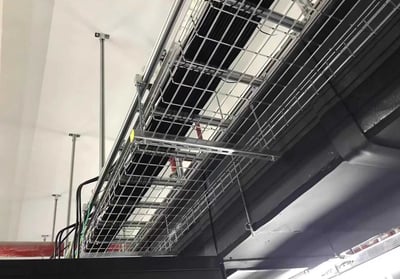

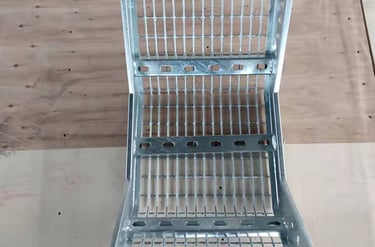

Wire Mesh Cable Tray

Real product photos and style designs are available to assist you in selecting the perfect mesh cable tray for your specific needs. With a variety of options to choose from, you can easily compare the different styles and make an informed decision based on the actual product images and designs. This allows you to visualize how the mesh cable tray will look in your space and ensure that it meets your aesthetic and functional requirements. By providing you with a clear visual representation of the available options, you can confidently select the best mesh cable tray for your project, knowing that it will not only meet but exceed your expectations.

Inspction

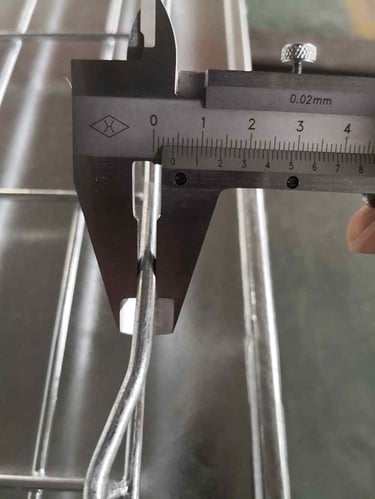

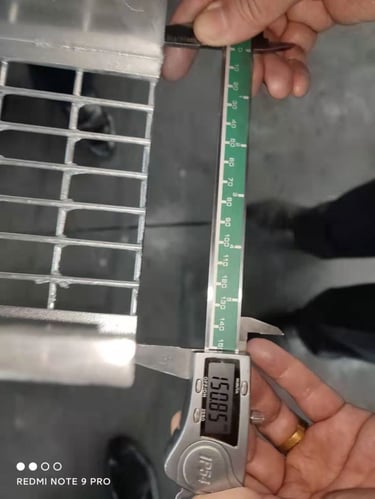

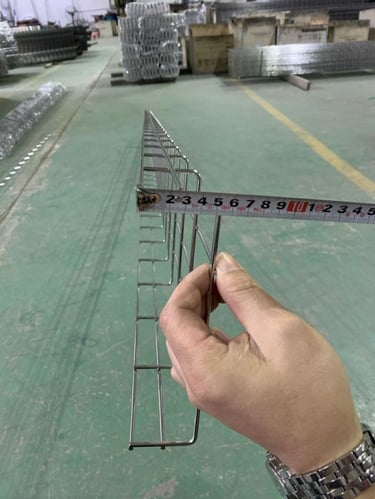

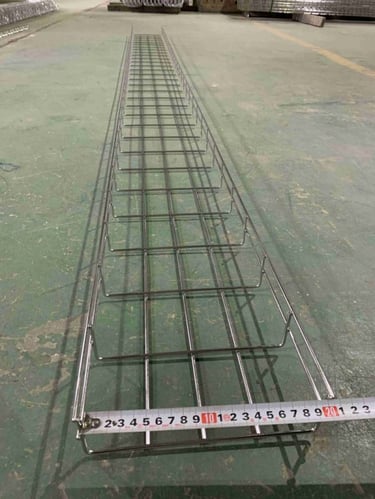

Provide length width wire dia inspection files for you

Packages

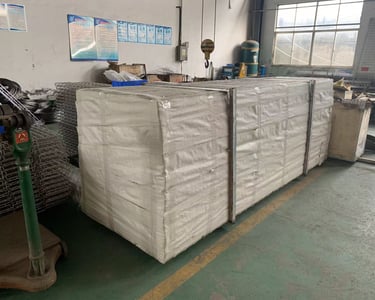

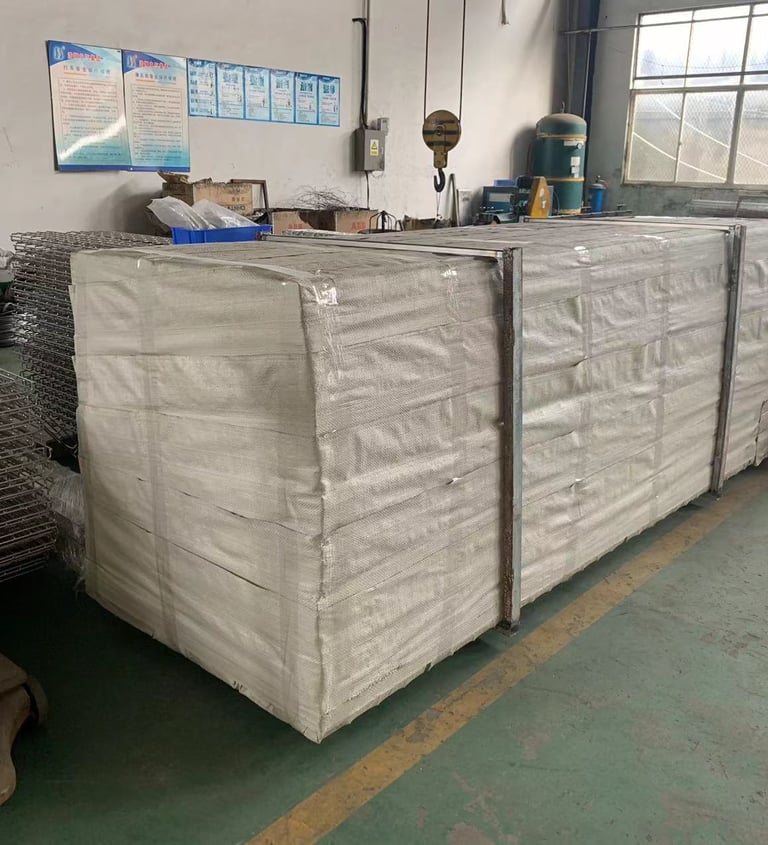

We packed every items with cartons and bundle

Happy Customers

Read what our satisfied customers have to say about our wire mesh cable tray.

The wire mesh cable tray exceeded my expectations. It's durable and easy to install.

Satisfied Customer

Dallas

I highly recommend the wire mesh cable tray for its reliability and versatility.

John Doe

Chicago

★★★★★

★★★★★

Innovative Cable Solutions

Providing reliable wire mesh cable trays for heavy power cable paths in various applications such as oil drilling platforms and modern office buildings.

Wire Mesh

Manage heavy loads with flexible wire mesh cable tray for easy cable installation.

Powerful Cable Management Solution

The wire mesh cable tray is a powerful cable management solution that has been tested in various applications, making it a reliable choice for all cable paths. It is commonly used below floors in modern office buildings and above ceilings in electrical and data installations. This versatile solution provides a secure and organized way to manage cables, ensuring safety and efficiency in the workplace. The wire mesh cable tray offers a practical and effective way to keep cables neatly organized and protected, making it an essential component in any electrical or data installation project. With its proven reliability and durability, it is the ideal choice for managing and organizing cables in a wide range of applications.

Power Cable Pathways System

The power cable pathways system on oil drilling platforms is crucial for ensuring the safe and efficient transmission of power throughout the facility. These pathways provide a secure route for the cables, protecting them from environmental hazards and potential damage. By carefully routing the cables, the risk of accidents and interruptions to power supply is minimized, allowing the operations to run smoothly and without disruption. The system also allows for easy access for maintenance and repairs, ensuring that any issues can be quickly addressed without causing significant downtime. Overall, the power cable pathways system plays a vital role in maintaining the functionality and safety of the oil drilling platform, making it an essential component of the overall infrastructure.
